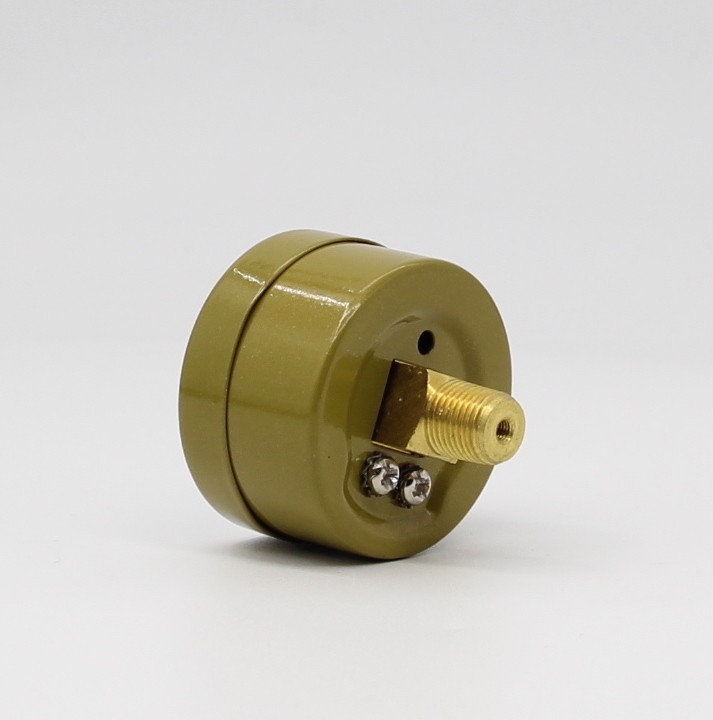

PG2 Regulators Axial Pressure Gauges
DEM PG2 Regulators Pressure Gauges is an axial pressure gauges, designed and manufactured with the standard ISO5171
Table of Contents
Description
◆PG2 Regulators Axial Pressure Gauges suited for welding and cutting, medical regulators
◆Full Brass connection
◆ High-strength face material window: Break resistant
◆Blow out case design
◆Double Scale design
Specification
|
Accuracy: |
2.5% of full scale |
Min/Max Temperature: |
Ambient :-20 to +60 °C Process : -20 to +60 °C |
|
Thread Type: |
1/8 NPT |
||
|
Dia Size: |
40mm(1.5”) |
Pressure Limitations: |
Steady: 75% of full scale Fluctuation: 65% of full scale Over pressure: 100% of full scale |
|
Bottom connection: |
High-tensile Brass |
||
|
Case: |
Steel with black color |
||
|
Window: |
PC |
Dail: |
Aluminum,plastic |
|
Pointer: |
Aluminum, Black |
Movement: |
Plated steel |
*Bottom Connection Size is optional subject to buyer’s request.
Download
Q&A
Q: How do I know my regulator connection?
A: For the gas regulator, there are outlet and inlet connections. you could confirm the right connection size with your gas supplier.
Q: What is the maximum safe regulator pressure for oxygen use?
A: Depending on the size of the gas tank（oxygen cylinder） subsequent capacity may differ, but typically full pressure is about 2,000 psi and air pressure can go up to 3,000 psi. With the pressure in the tank, the Oxygen gas regulator reduces the supplied pressure to a lower, safer level for the user.
Q: Could I order according to my country’s standards?
A: DEM regulator design according to internationally recognized standards EN ISO, BSP, CGA, NFE and AS. Manufactured under the quality management of EN ISO 9001. DEM could offer the right type with the buyer’s country standard.
Q: Could I use my brand and sticker?
A: DEM accepts OEM and ODM order
