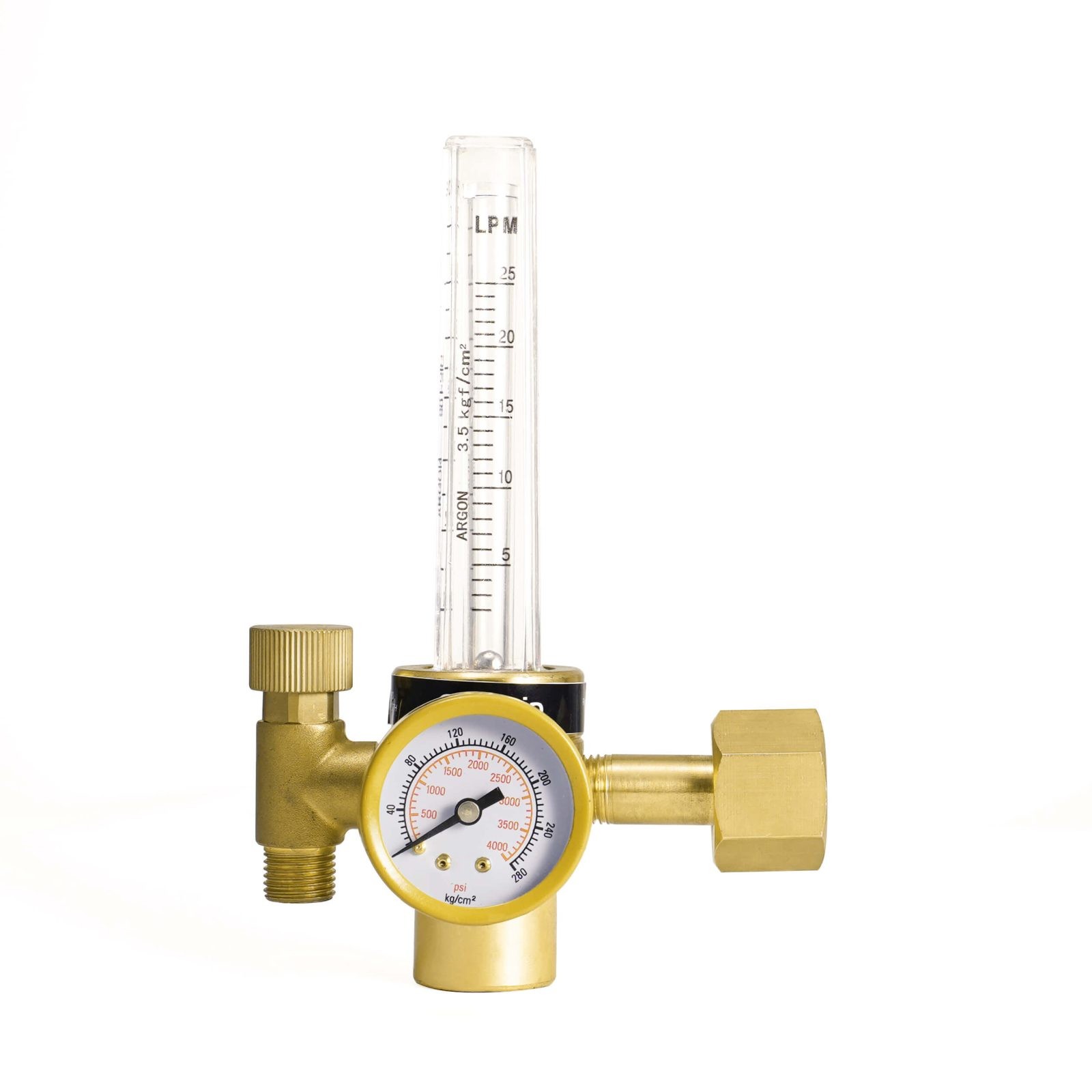

WR1300 Flowmeter Welding Regulator
Manufactured under ISO 9001, conforms to ISO 2503.Customized Outlet Connection service.
Clear Gauge Display high pressure gauge ( 0 – 4000 PSI)
Precise Gas Flow Control ( 0 – 60 CFH)
Table of Contents
Description
WR1300 Flowmeter Welding Regulator
TECHNICAL DATA
- Body/Bonnet: Forged brass
- Pressure Gauge: Safety design, 40mm gauge
- Inlet Stem & Nuts: High-tensile brass
- Setting: Preset
- Filter: Bronze
- Weight: 0.9 kg/each
*Inlet thread type and inlet direction are subject to cylinder connection. Outlet thread type is subject to buyer’s request.
Specification
| MODEL | GAS | FLOW(L/Min) | MAX INLET PRESSURE(bar) |
| WR1300-AR | ARGON | 0-25 | 250 |
| WR1300-CO2 | CO2 | 0-25 | 250 |
* 1MPa=1000KPa=10.197kgf/cm2=145.04PSI 1M3/h=16.67LPM=35.32SCFH
Download
Q&A
Q: How do I know my regulator connection?
A: For the gas regulator, there are outlet and inlet connections. You can confirm the right connection size with your gas supplier.
Q: What should I check before choosing CO2 /Argon regulators?
A: If you want to get a high quality one at a good price. Be sure that the regulator is manufactured according to the standard and conforms to it. Supplier’s ability, the details of regulators like material, spare parts …
Q: Could I order according to my country’s standards?
A: DEM regulator design according to internationally recognized standards EN ISO, BSP, CGA, NFE, and AS. They are manufactured under the quality management of EN ISO 9001. DEM could offer the right type with the customer’s country standard.
Q: Could I use my brand and sticker?
A: DEM accepts OEM and ODM orders.
